┌──────────────────────────── DMS EXECUTION POWERTRAIN ────────────────────────────┐ │ │ │ LANGUAGE Python 3.14 │ │ FRAMEWORK FastAPI (uvicorn, port 8765, async) │ │ DATA ENGINE Polars LazyFrames (constant memory, Rust-backed, 10-50x Pandas) │ │ DATABASE Snowflake (SOURCE read-only + LAB read-write) │ │ AI AWS Bedrock Claude 3.5 Sonnet (14 agents) │ │ COMPUTE App Runner (web) + ECS Fargate (workers, 3-50 containers) │ │ STATE DynamoDB (checkpoints, audit, API users, telemetry) │ │ STORAGE S3 (Parquet staging, exchange, IP vault, builds) │ │ CI/CD CodeBuild → ECR → App Runner (manual deploy, auto OFF) │ │ SECRETS AWS Secrets Manager (Snowflake, API keys) │ │ │ ├──────────────────────────── PIPELINE FLOW ───────────────────────────────────────┤ │ │ │ ┌─────────┐ ┌─────────┐ ┌───────────┐ ┌──────────┐ ┌────────┐ │ │ │EXTRACT │──►│ PROFILE │──►│ TRANSFORM │──►│ VALIDATE │──►│ LOAD │ │ │ │Keyset │ │Stats+AI │ │CDM 41 ent │ │Rules+VEE │ │S3→COPY │ │ │ └─────────┘ └─────────┘ └───────────┘ └──────────┘ └────────┘ │ │ │ ├──────────────────────────── ORCHESTRATION ───────────────────────────────────────┤ │ │ │ MasterAgent: THINK (decompose job) → SWARM (parallel Fargate) → REVIEW (check) │ │ Never self-approves · Human gates for mapping/PII/recon · Wave DAG (5 waves) │ │ │ ├──────────────────────────── SCALING ─────────────────────────────────────────────┤ │ │ │ <5K rows → 1 worker (in-process) │ │ 5K–100K → 3 Fargate workers │ │ 100K–1M → 5–10 workers + partitioning │ │ 1M–10M → 10–20 workers + ACCNO partitions │ │ >10M → 20–50 workers (full swarm) │ │ │ ├──────────────────────────── PROVEN SCALE ────────────────────────────────────────┤ │ │ │ Mercury: 125M rows │ Genesis: 681K CDC + 74K BCT │ Pulse: 2.34B │ PG: 217K │ │ │ ├──────────────────────────── SERVICES (Build #340) ───────────────────────────────┤ │ │ │ App Runner: DEV/UAT/DEMO/PROD (4 services) │ │ Microservices: DMS-Masker, DMS-BCT, DMS-Replication │ │ Lambdas: dms-bridge, dms-integrations, dms-ai-query │ │ Gentrack Agent Core: /gac (96 files, 869 tests) │ │ IP Protection: S3 vault + DynamoDB + Telemetry + Licensing │ │ │ └──────────────────────────────────────────────────────────────────────────────────┘

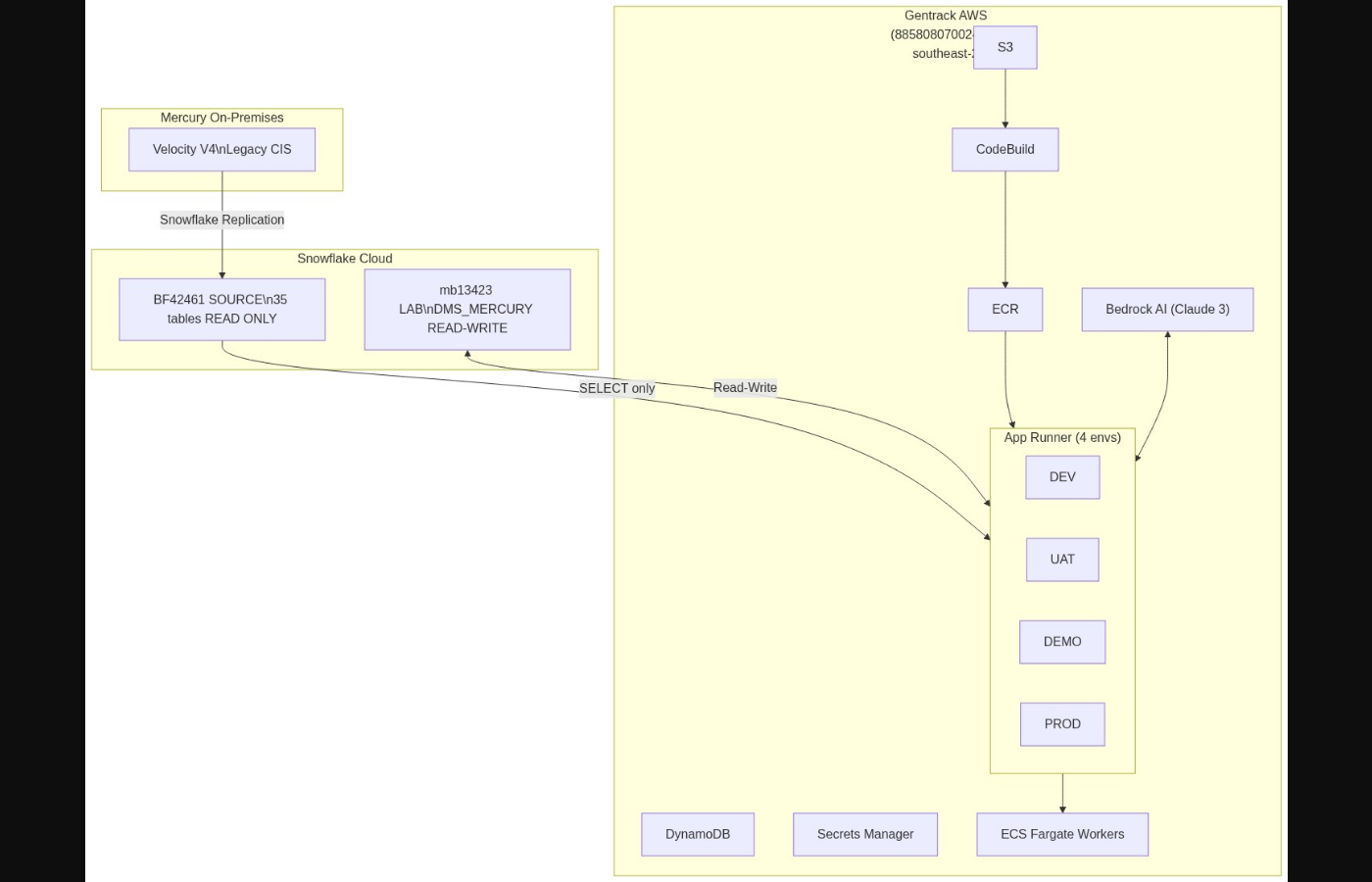

1. Current State Infrastructure

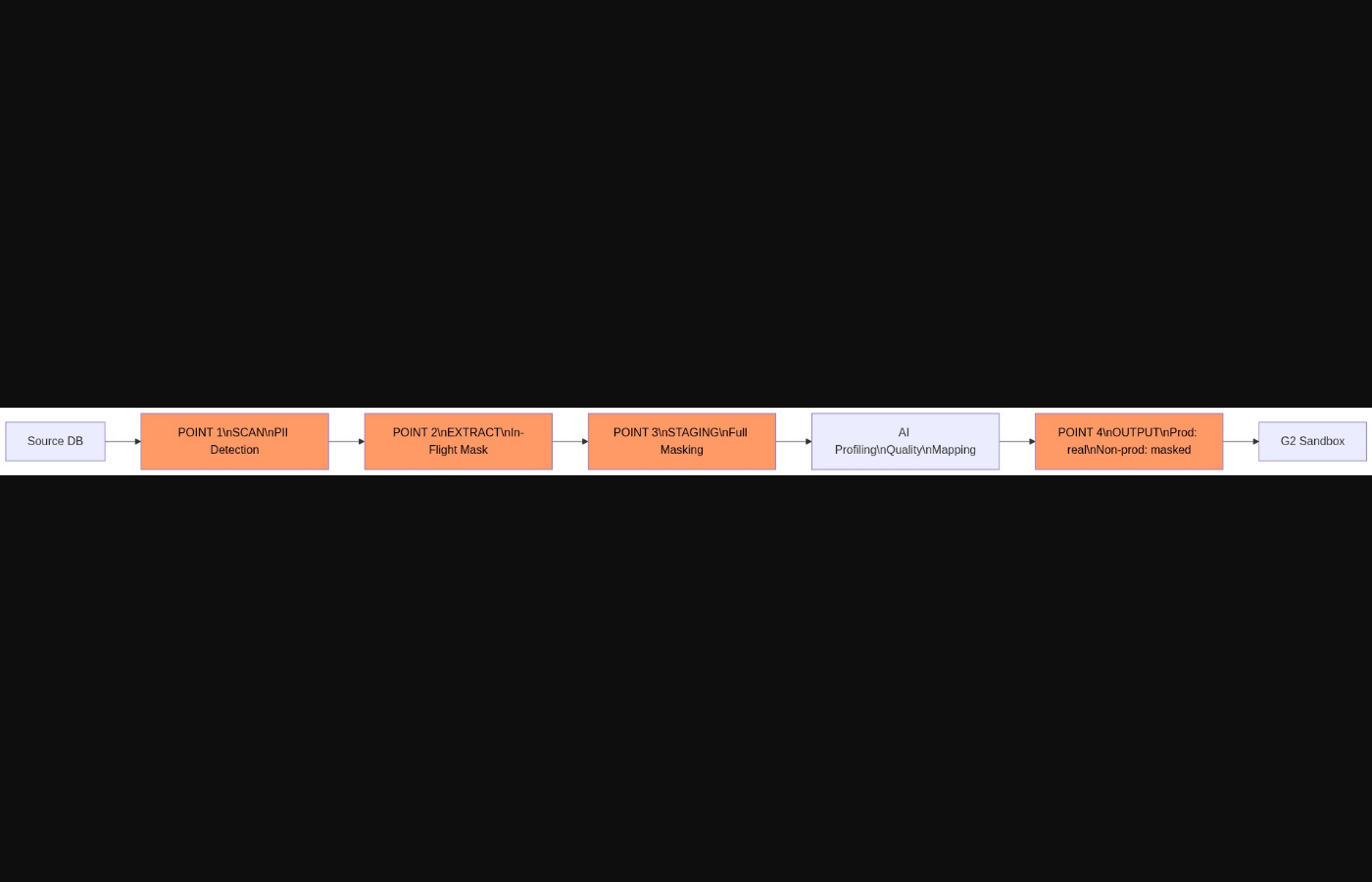

2. Data Masking Pipeline

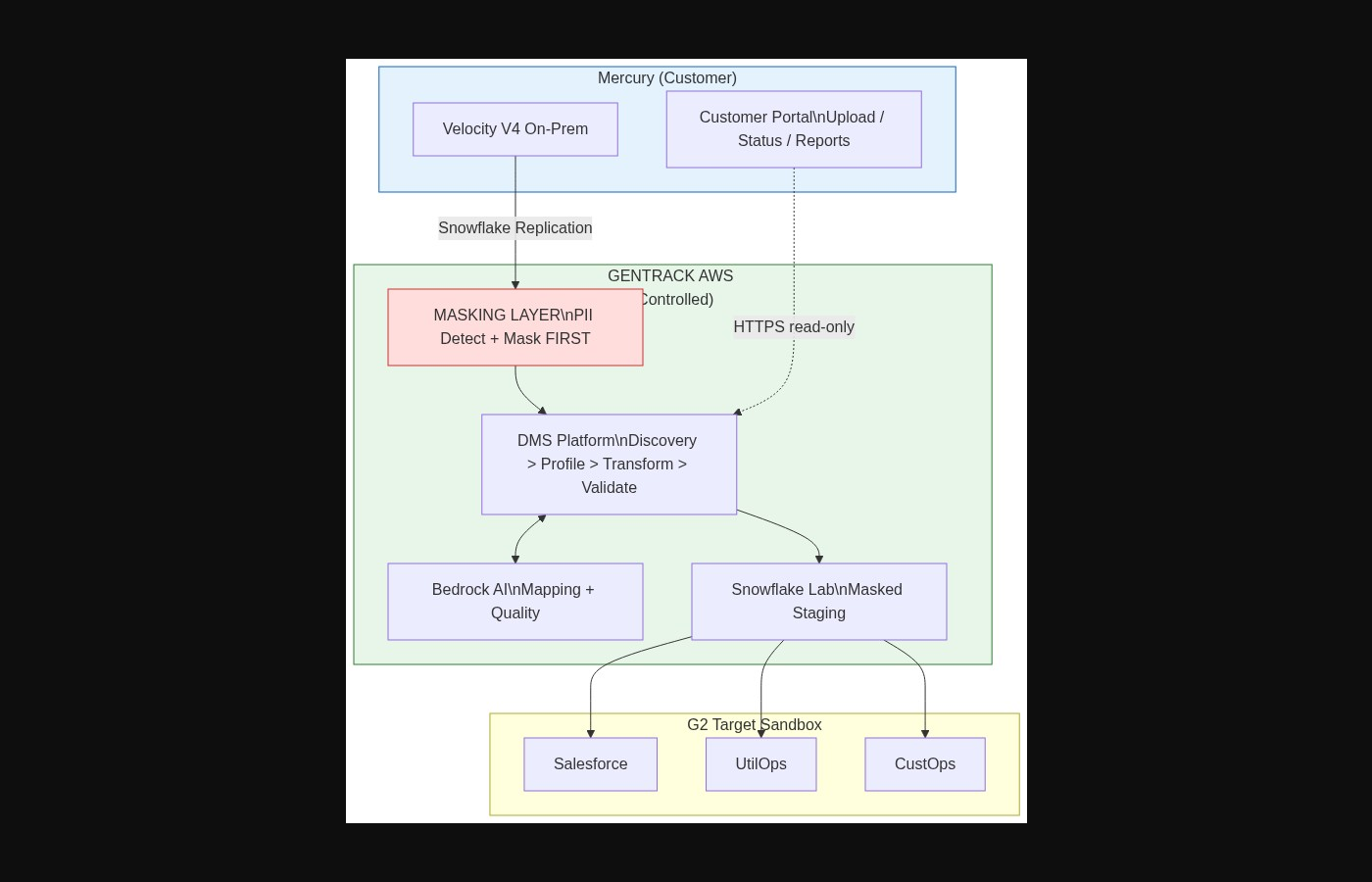

3. Mercury Deployment Model

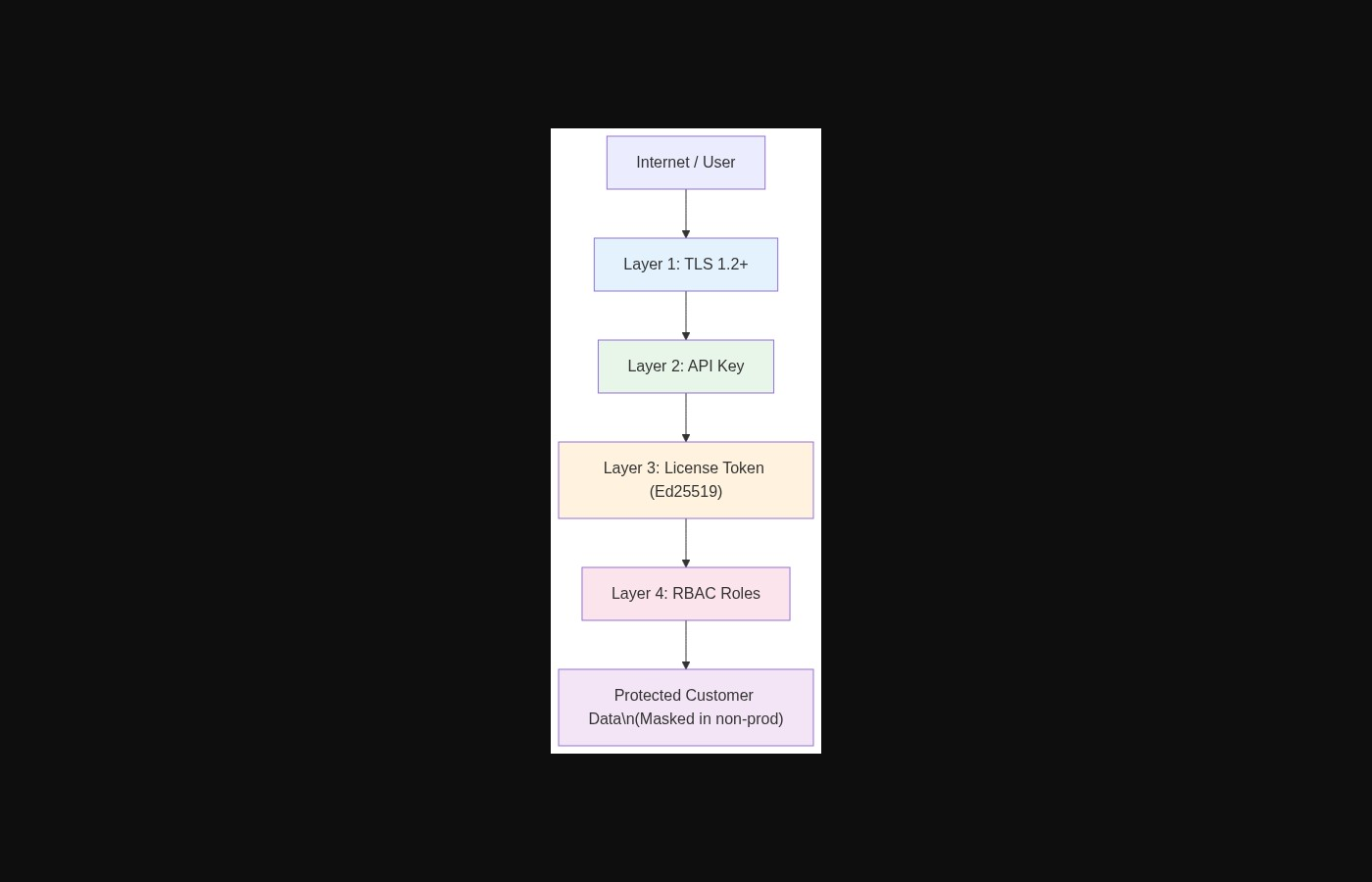

4. Security Layers

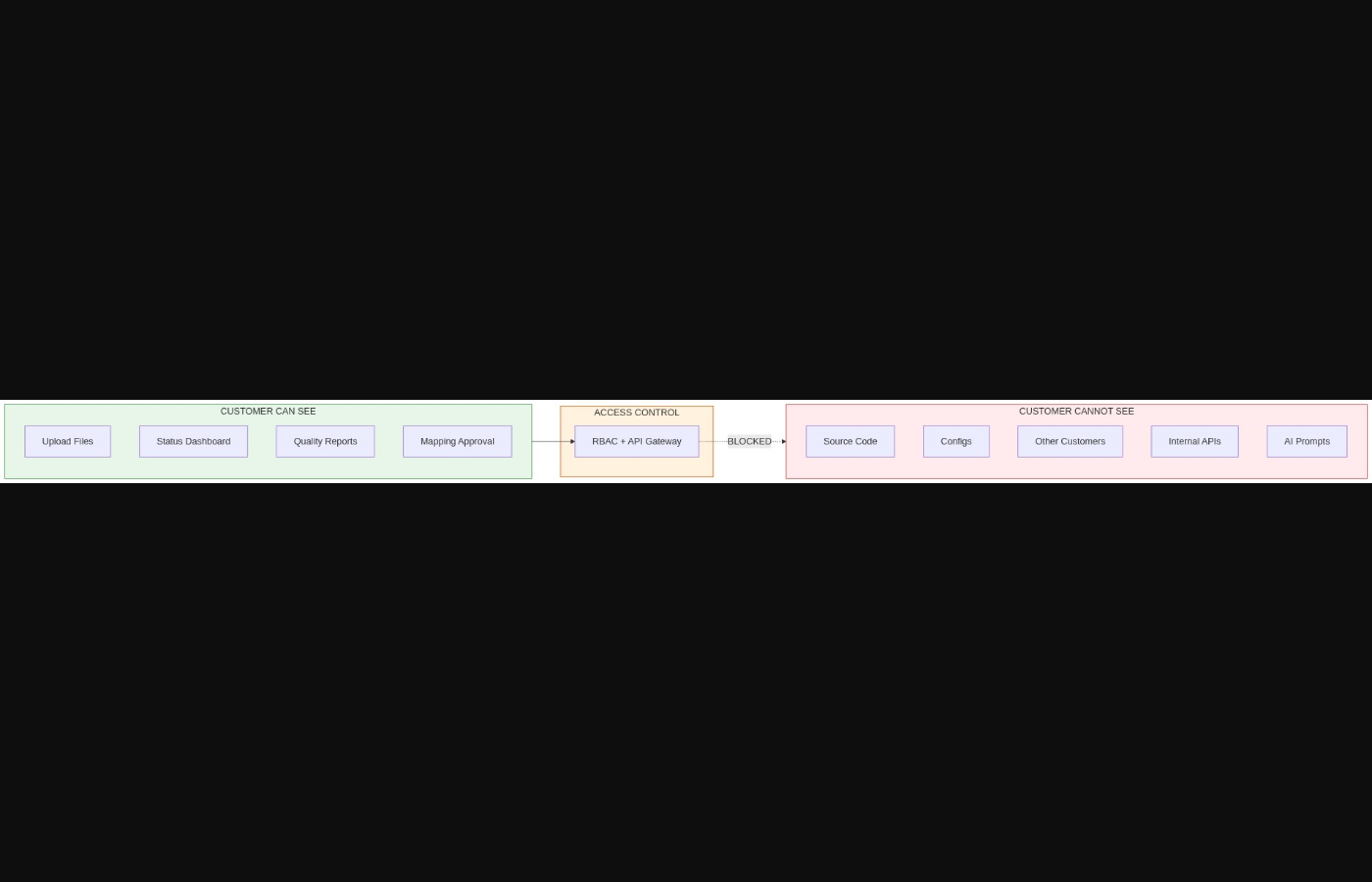

5. Customer Portal Boundary
